Time series regression with eigenkit: HQNR and RecurrentHQNR compared

Why this problem matters

Forecasts of air quality support public health alerts, decisions on traffic and industry, and early warnings when the level of a pollutant rises sharply. An hourly series with several variables combines the weather, the seasons and human activity. The target at the next step (for example, the concentration of fine particulate matter, PM2.5) is ordered in time, so the split into training and test data must keep the order of time instead of shuffling the rows at random.

Dataset

This example uses the Beijing PM2.5 series: hourly measurements of fine particulate matter in Beijing, with several weather variables. We load the cleaned comma-separated values (CSV) file of eigenkit. Its last column, the PM2.5 concentration, is the regression target. The rows with a missing target were already removed from the file, and the wind direction was already encoded as one-hot columns.

Our approach

We compare two hybrid quantum and classical regressors of eigenkit. Each one is wrapped in QuantumTimeSeriesRegressor:

  1. HQNR (the hybrid quantum neural network regressor): each sliding window is flattened to a single vector per sample. With autoregressive=True, each window also holds the past values of the target, as an extra channel (see QuantumTimeSeriesRegressor in the library documentation).
  2. RecurrentHQNR: a gated recurrent unit (GRU) reads each window as a sequence, and then the quantum block predicts the target at the next step.

Both models use the same length of window, the same shift of the horizon and the same held-out test segment, which comes after the training data in time. We use only the first rows of each split, so that the example finishes in a reasonable time. For runs on the full data, increase MAX_TRAIN_ROWS, MAX_TEST_ROWS and epochs.

Import libraries

import matplotlib
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd

from sklearn.metrics import mean_absolute_error, mean_squared_error, r2_score
from sklearn.preprocessing import StandardScaler

from eigenkit import (
    HQNR,
    QuantumTimeSeriesRegressor,
    RecurrentHQNR,
)
from eigenkit.datasets import STYLE_COLORS, load_dataset, rc_params

Loading the selected dataset

data = load_dataset("beijing_pm25")
X_train_full, y_train_full = data["X_train"], data["y_train"]
X_test_full, y_test_full = data["X_test"], data["y_test"]

# Subsample for notebook runtime (remove or raise limits for full data)
MAX_TRAIN_ROWS = 8000
MAX_TEST_ROWS = 2500

X_train = X_train_full[:MAX_TRAIN_ROWS]
y_train = y_train_full[:MAX_TRAIN_ROWS]
X_test = X_test_full[:MAX_TEST_ROWS]
y_test = y_test_full[:MAX_TEST_ROWS]

scaler = StandardScaler()
X_train = scaler.fit_transform(X_train).astype(np.float32)
X_test = scaler.transform(X_test).astype(np.float32)

print("Train shape:", X_train.shape, y_train.shape)
print("Test shape:", X_test.shape, y_test.shape)

Train shape: (8000, 13) (8000,)
Test shape: (2500, 13) (2500,)

Windowing parameters

in_size is the number of past hours in each window, and shift=1 means that we predict the step just after the window. With autoregressive=True, the wrapper adds the past values of the target inside each window, so the number of channels is n_features + 1.

in_size = 24
shift = 1
n_chan = X_train.shape[1] + 1  # exogenous features + autoregressive target channel
flat_dim = in_size * n_chan

N_QUBITS = 4
RANDOM_STATE = 42

# Targets aligned with windowed predictions (same for both models)
y_test_aligned = y_test[in_size + shift - 1 :]

print("Channels per time step (with AR):", n_chan)
print("Flattened HQNR input dim:", flat_dim)
print("Aligned test targets:", len(y_test_aligned))

Channels per time step (with AR): 14
Flattened HQNR input dim: 336
Aligned test targets: 2476

Model 1: HQNR inside QuantumTimeSeriesRegressor

hqnr_base = HQNR(
    in_features=flat_dim,
    in_quantum=N_QUBITS,
    n_qubits=N_QUBITS,
    depth=2,
    layer_type="Basic",
    variational_type="strong",
    basis="Y",
    lr=0.01,
    optimizer="adam",
    epochs=500,
    batch_size=128,
    loss_func="mse",
    show_progress=True,
    random_state=RANDOM_STATE,
)

hqnr_ts = QuantumTimeSeriesRegressor(
    estimator=hqnr_base,
    in_size=in_size,
    shift=shift,
    autoregressive=True,
)

hqnr_ts.fit(X_train, y_train)
print(
    "Training complete (HQNR). Last epoch loss:",
    round(float(hqnr_base.train_losses_[-1]), 6),
)

HQNR training | Epoch 1/500 | loss=19248.546565 | elapsed=3.3s | eta=1647.4s
HQNR training | Epoch 2/500 | loss=18833.893043 | elapsed=6.5s | eta=1626.9s
HQNR training | Epoch 3/500 | loss=17989.033854 | elapsed=9.8s | eta=1626.7s
...
HQNR training | Epoch 498/500 | loss=1050.977663 | elapsed=1497.2s | eta=6.0s
HQNR training | Epoch 499/500 | loss=1314.121002 | elapsed=1500.4s | eta=3.0s
HQNR training | Epoch 500/500 | loss=1180.751416 | elapsed=1503.5s | eta=0.0s
Training complete (HQNR). Last epoch loss: 1180.751416

Model 2: RecurrentHQNR inside QuantumTimeSeriesRegressor

seq_base = RecurrentHQNR(
    seq_feature_dim=n_chan,
    rnn_type="gru",
    rnn_hidden_dim=16,
    rnn_num_layers=1,
    in_quantum=N_QUBITS,
    n_qubits=N_QUBITS,
    depth=2,
    layer_type="Basic",
    variational_type="strong",
    basis="Y",
    lr=0.005,
    optimizer="adam",
    epochs=400,
    batch_size=128,
    loss_func="mse",
    show_progress=True,
    random_state=RANDOM_STATE,
)

seq_ts = QuantumTimeSeriesRegressor(
    estimator=seq_base,
    in_size=in_size,
    shift=shift,
    autoregressive=True,
)

seq_ts.fit(X_train, y_train)
print(
    "Training complete (RecurrentHQNR). Last epoch loss:",
    round(float(seq_base.train_losses_[-1]), 6),
)

RecurrentHQNR training | Epoch 1/400 | loss=19419.129154 | elapsed=4.1s | eta=1643.2s
RecurrentHQNR training | Epoch 2/400 | loss=19135.513052 | elapsed=8.6s | eta=1707.3s
RecurrentHQNR training | Epoch 3/400 | loss=18939.542535 | elapsed=12.9s | eta=1712.4s
...
RecurrentHQNR training | Epoch 398/400 | loss=844.827900 | elapsed=618.8s | eta=3.1s
RecurrentHQNR training | Epoch 399/400 | loss=915.601318 | elapsed=620.3s | eta=1.6s
RecurrentHQNR training | Epoch 400/400 | loss=793.070036 | elapsed=621.8s | eta=0.0s
Training complete (RecurrentHQNR). Last epoch loss: 793.070036

Evaluation

y_pred_hqnr = hqnr_ts.predict(X_test, y_history=y_test)
y_pred_seq = seq_ts.predict(X_test, y_history=y_test)

assert len(y_pred_hqnr) == len(y_test_aligned)
assert len(y_pred_seq) == len(y_test_aligned)


def _report(name: str, y_true: np.ndarray, y_pred: np.ndarray) -> dict:
    mae = float(mean_absolute_error(y_true, y_pred))
    rmse = float(np.sqrt(mean_squared_error(y_true, y_pred)))
    r2 = float(r2_score(y_true, y_pred))
    print(f"{name}")
    print(f"  R2:   {r2:.4f}")
    print(f"  MAE:  {mae:.4f}")
    print(f"  RMSE: {rmse:.4f}")
    return {"model": name, "r2": r2, "mae": mae, "rmse": rmse}


rows = [
    _report("HQNR + QuantumTimeSeriesRegressor", y_test_aligned, y_pred_hqnr),
    _report("RecurrentHQNR + QuantumTimeSeriesRegressor", y_test_aligned, y_pred_seq),
]

HQNR + QuantumTimeSeriesRegressor
  R2:   0.9184
  MAE:  18.3597
  RMSE: 33.0781
RecurrentHQNR + QuantumTimeSeriesRegressor
  R2:   0.8679
  MAE:  28.6717
  RMSE: 42.0891

Plotting results

for theme in ("light", "dark"):
    with matplotlib.rc_context(rc_params(theme=theme)):
        fig, axes = plt.subplots(2, 2, figsize=(12, 8))

        axes[0, 0].plot(
            hqnr_base.train_losses_, color=STYLE_COLORS[0], label="train loss"
        )
        axes[0, 0].set_title("HQNR training loss")
        axes[0, 0].set_xlabel("Epoch")
        axes[0, 0].set_ylabel("MSE")
        axes[0, 0].legend()

        axes[0, 1].plot(seq_base.train_losses_, color=STYLE_COLORS[0], label="train loss")
        axes[0, 1].set_title("RecurrentHQNR training loss")
        axes[0, 1].set_xlabel("Epoch")
        axes[0, 1].set_ylabel("MSE")
        axes[0, 1].legend()

        n_plot = min(400, len(y_test_aligned))
        idx = np.arange(n_plot)
        axes[1, 0].plot(
            idx, y_test_aligned[:n_plot], color=STYLE_COLORS[3], label="true", alpha=0.85
        )
        axes[1, 0].plot(
            idx,
            y_pred_hqnr[:n_plot],
            color=STYLE_COLORS[0],
            linestyle="--",
            label="pred",
            alpha=0.85,
        )
        axes[1, 0].set_title("HQNR forecast (test prefix)")
        axes[1, 0].set_xlabel("Window index")
        axes[1, 0].set_ylabel("PM2.5")
        axes[1, 0].legend()

        axes[1, 1].plot(
            idx, y_test_aligned[:n_plot], color=STYLE_COLORS[3], label="true", alpha=0.85
        )
        axes[1, 1].plot(
            idx,
            y_pred_seq[:n_plot],
            color=STYLE_COLORS[0],
            linestyle="--",
            label="pred",
            alpha=0.85,
        )
        axes[1, 1].set_title("RecurrentHQNR forecast (test prefix)")
        axes[1, 1].set_xlabel("Window index")
        axes[1, 1].set_ylabel("PM2.5")
        axes[1, 1].legend()

        plt.tight_layout()
        fig.savefig(f"pollution_hqnr_{theme}.png")
        if theme == "light":
            plt.show()
        else:
            plt.close(fig)

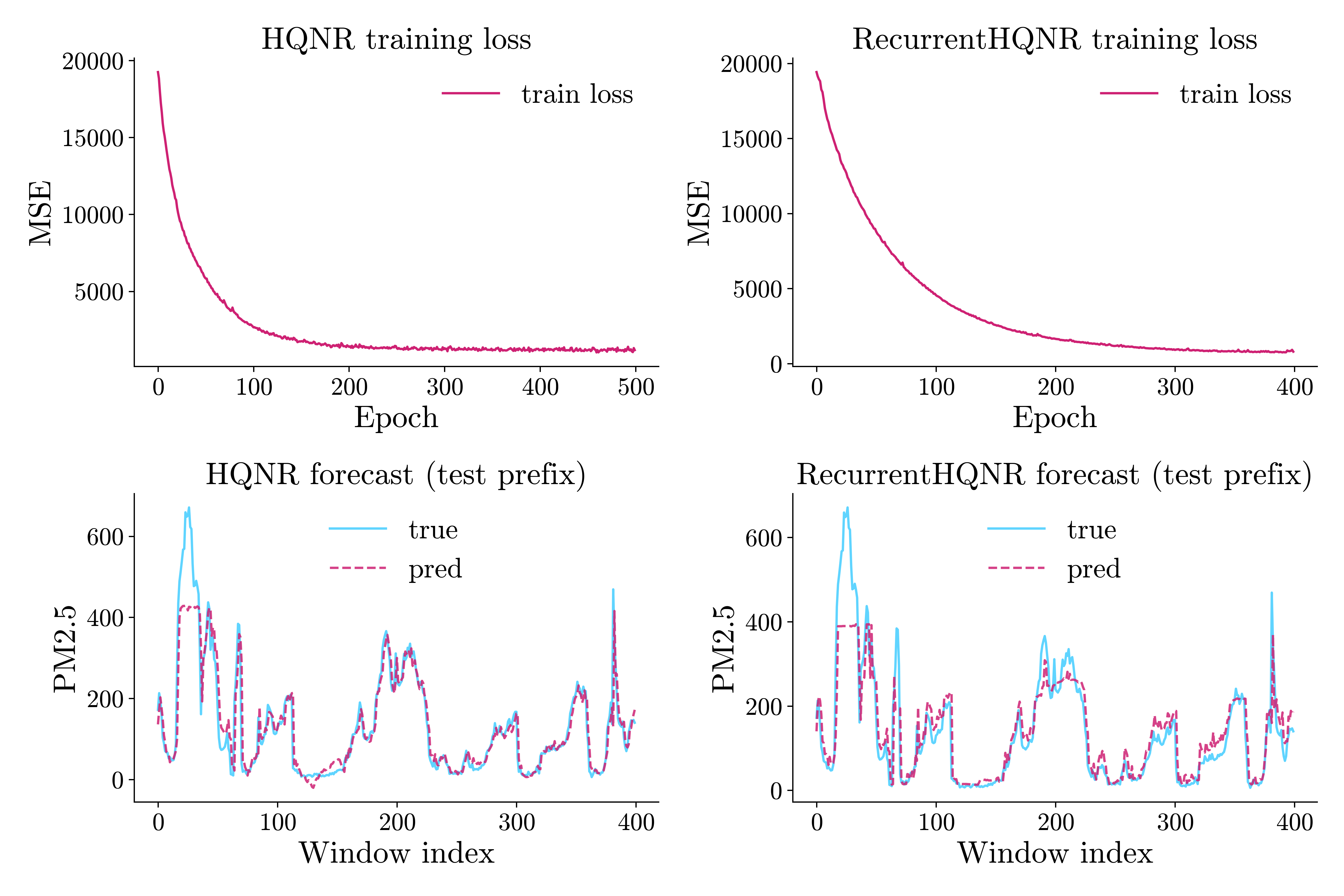

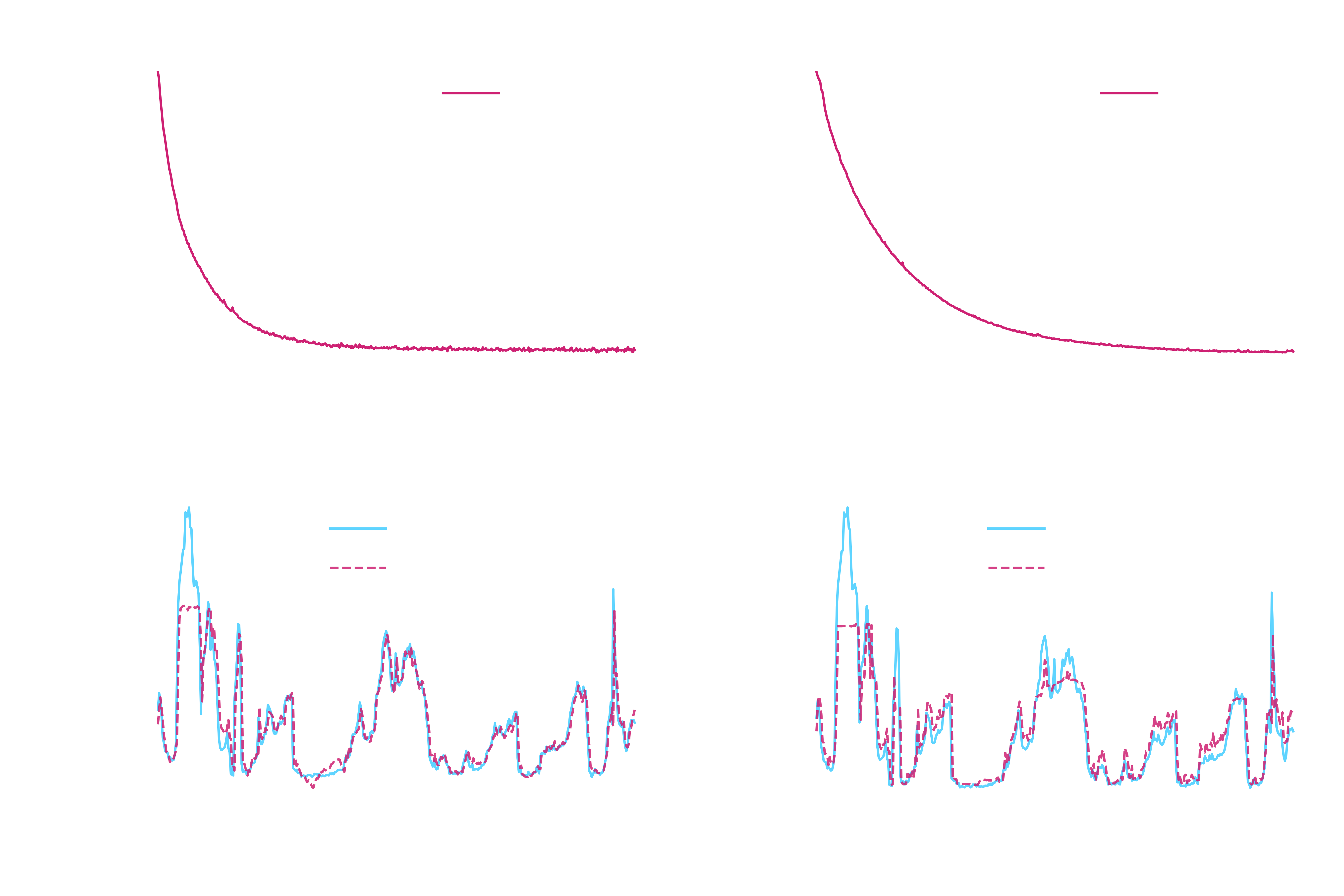

The training curves, and the true and predicted PM2.5 values, for HQNR and RecurrentHQNR (light theme). The training curves, and the true and predicted PM2.5 values, for HQNR and RecurrentHQNR (dark theme).

Conclusion

In this run, both models follow the PM2.5 curve. HQNR is a little better: its coefficient of determination (R²) is 0.918, and its root mean squared error (RMSE) is 33.08. RecurrentHQNR reaches R² = 0.868 and an RMSE of 42.09.

This is not a strict comparison of the two architectures. Both models use the same window and the same training data, but the two architectures behave differently during optimisation. Treat the plot as a worked example, and not as proof that one estimator is always better.

The practical lesson is simple: look at the fit of the time series on a plot, and tune the inner estimator. A fair comparison would tune the learning rate of each model separately, use several random seeds, and give both models the same training budget.
